Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-H50

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

Detailed product Description:

Terminal Width: 20.0mm, 600V 150A, AWG:6-1/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

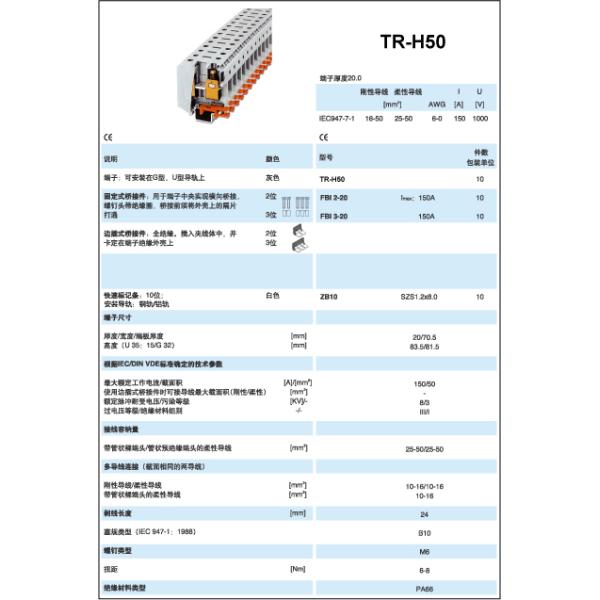

Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-H50

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0End Cover Grey

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0Fixed Bridge

FBI 2-20 Imax: 150A

FBI 3-20

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0Insertion Bridge

 EB 10-15 Imax:110A

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0Separating Plate

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0Partition Plate
Zack Strip White ZB10
Screwdriver SZS 1.2×8.0
Rail Material aluminum
Dimensions mm 20/70.5
Height (U35: 7.5/U35: 15G 32) mm 83.5/81.5
Screw / Torque Nm M6 / 6-8
Stripping Length mm 24
IEC Technical Data
Max. Load Current / Cross Section A / mm2 150 / 150
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category Ⅲ

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.

Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
